Ship profile Ankie
|
Name: |
ANKIE |
IMO number: |
9331359 |
|
Vessel Type: |
General Cargo |
MMSI: |
244554000 |
|
Gross Tonnage: |
2528 |
Year Built: |
2007 |
|
Summer DWT: |
3638 t |
Flag: |
Netherlands [NL] |
|
Av. Speed |
10kn |
Av. Fuel Consumption: |
4000 / day |
|
Owner: |
Van Dam Shipping Company: Hoofdweg-North 34, 9909 AD Spijk (Groningen) The Netherlands |
||
Jan van Dam, owner of van Dam shipping:
‘We expect the reduction in fuel costs over a period of approx. three years will equal the costs of the system and thus fulfill our dream of using the wind again in modern shipping, which has been 40 years in the making.’
Contact van Dam Shipping

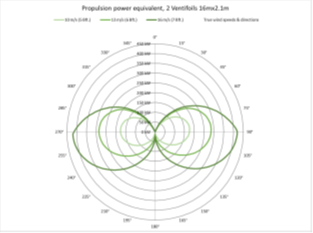

Performance Data of the Installation
|
Main particulars Ventifoils |
|||
|
Dimensions (abovemountingpoint) |
|||
|
Deployed |
|
17.3 m |
|
|
Closed |
|
1.6 m |
|
|
VentiFoil |
|
2.2 *1.3 *16 m |
|
|
Weight(TwoFoils) |
|
8000 kg |
|
|
Centre of Gravity above foundation |
|||
|
Deployed |
|
4.5 m |
|
|
Closed |
|
0.7 m |
|
|
Material |
|||
|
Foundation |
|
Steel |
|
|
VentiFoil |
|
Aluminumalloy |
|
|
Electrical particulars Ventifoils |
|||
|
Powerdemand |
|||
|
Mainpowersupply |
38.0 kW |
|
|
|
Ventilators |
|
2×15 kW |
|
|
Voltage |
3phase, 400-460 V @50-60 Hz |
||
|
Controlunit |
|
PLC |
|
|
Operational conditions 2foils |
|
|
|
17 |
m/s |
|
Thrustforce(max.continuous) |
40 |
kN |
|
Thrustpower reduction(max.continuous) |
400 |
kW |
